What is your philosophy regarding whether the upper tone bar should or should not touch the bridge plate? It seems that some do... and some don't... I do. Should I reconsider?

_________________
Steve Sollod (pronounced sorta like "Solid")
www.swiftcreekguitars.com
Top
 Profile

Rod True
PostPosted: Tue Jan 19, 2016 9:05 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada
My brace layout is slightly different than most. I place my upper tone bar so it butts up to the bridge plate almost at the centre of the bridge plate, and actually I couple all the braces to each other by butting to one of the braces.

I think it important that the whole top work together and by not coupling each brace to the next there is a disconnect between everything that produces sound from the top.

As to your specific question, I do couple the upper tone bar to the bridge plate...as mentioned.


Sent from my iPhone using Tapatalk

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson
Top
 Profile

jsmith
PostPosted: Tue Jan 19, 2016 11:30 pm
Offline
Cocobolo
Cocobolo

Joined: Tue Jul 15, 2008 8:32 pm
Posts: 321

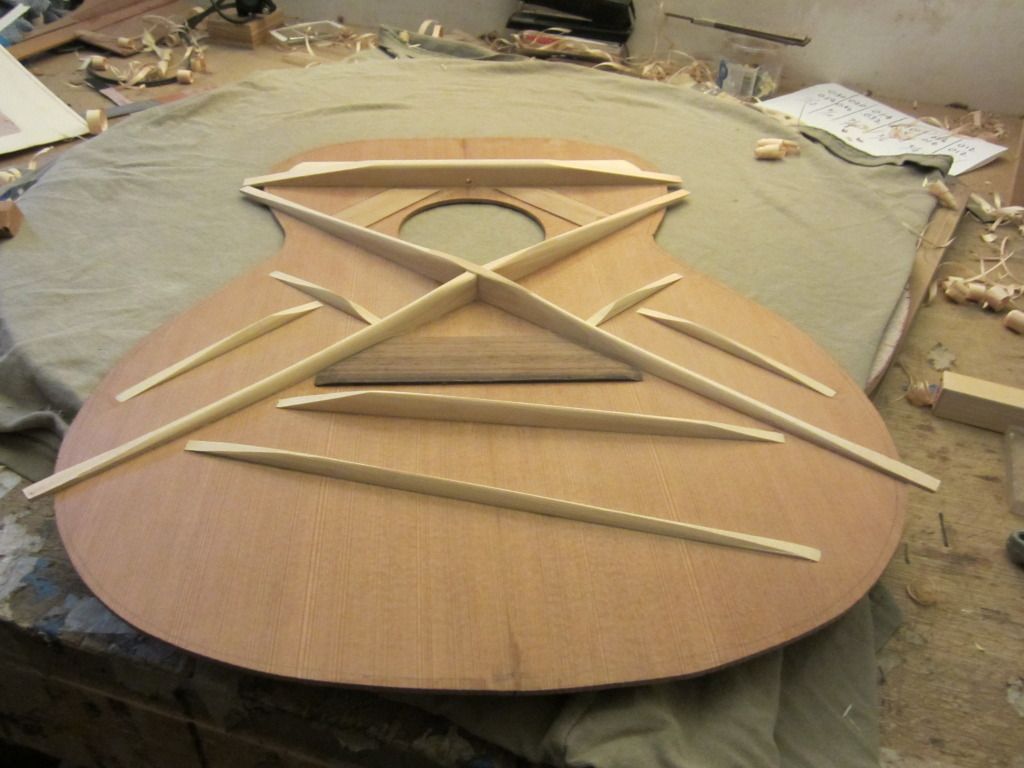

I don't doubt that Rod has great results with his bracing formula. I've had extremely positive results from this pattern, a variation on the system developed by my teacher and former employer. In this case it's for my OM model. As you can see, I'm a non-tucker. And a non-scalloper. Of course, I adjust the bracing height & location depending on the body size and whether it's a 6 or 12.



_________________
michael propsom
www.propsomguitars.com


These users thanked the author jsmith for the post: Robbie_McD (Wed Jan 20, 2016 8:48 am)
Top
 Profile

Pat Foster
PostPosted: Tue Jan 19, 2016 11:33 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Sat May 17, 2008 1:11 pm
Posts: 2390
Location: Spokane, Washington
First name: Pat
Last Name: Foster
Country: USA
Focus: Build
jsmith wrote:
I don't doubt that Rod has great results with his bracing formula. I've had extremely positive results from this pattern, a variation on the system developed by my teacher and former employer. In this case it's for my OM model. As you can see, I'm a non-tucker. And a non-scalloper. Of course, I adjust the bracing height & location depending on the body size and whether it's a 6 or 12.




I would say he gets GREAT results!

Pat

_________________
formerly known around here as burbank
_________________

http://www.patfosterguitars.com
Top
 Profile

Rod True
PostPosted: Wed Jan 20, 2016 2:19 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada
You guys are too kind, but I'm just a noob in the craft with only 12 guitars under my belt.

This is my latest bracing patter which I've done with about 50% of my guitars. I've tried the Somogyi double x thing as well as the tapered vs scalloped thing....my best sounds (subjective to my ears) has been this one here.

Attachment:


I'll even give the profile pics.

Attachment:


Attachment:


You do not have the required permissions to view the files attached to this post.

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson
Top
 Profile

jsmith
PostPosted: Wed Jan 20, 2016 2:23 am
Offline
Cocobolo
Cocobolo

Joined: Tue Jul 15, 2008 8:32 pm
Posts: 321
Gorgeous top, Rod. And something tells me that went on a cutaway.

_________________
michael propsom
www.propsomguitars.com
Top
 Profile

Rod True
PostPosted: Wed Jan 20, 2016 2:28 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada
Michael, that looks a bit like the Lowden bracing style....?

And nice looking top. Cedar or redwood?

jsmith wrote:
I don't doubt that Rod has great results with his bracing formula. I've had extremely positive results from this pattern, a variation on the system developed by my teacher and former employer. In this case it's for my OM model. As you can see, I'm a non-tucker. And a non-scalloper. Of course, I adjust the bracing height & location depending on the body size and whether it's a 6 or 12.



_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson
Top
 Profile

Rod True
PostPosted: Wed Jan 20, 2016 3:04 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada
jsmith wrote:
Gorgeous top, Rod. And something tells me that went on a cutaway.


Yes, that was on a cutaway :)

Upper most Transverse gave that away I'm sure.
