Edit: I realize there's a lot of pictures. If this forum is not the appropriate place to post this, please tell me and I'll ask for it to be moved to the "Doc-u-build" section.

Hello gentlemen,

First a disclaimer: I don't post often but I lurk quite a lot.
Still, I figured some of you might be interested by the old guitar I'm currently working on, and I could also get some guidance from knowledgeable people at the same time.

(psst: if you have a lot of time on your hands and want to see all the pictures, go there: https://plus.google.com/photos/11477671 ... 2598340561)

I bought this little thing on ebay for not much money.

It's a smallish guitar, ladder braced, with birdseye maple back and sides, darkish spruce top, no binding, cedar neck with no truss rod, metal tailpiece and floating bridge.

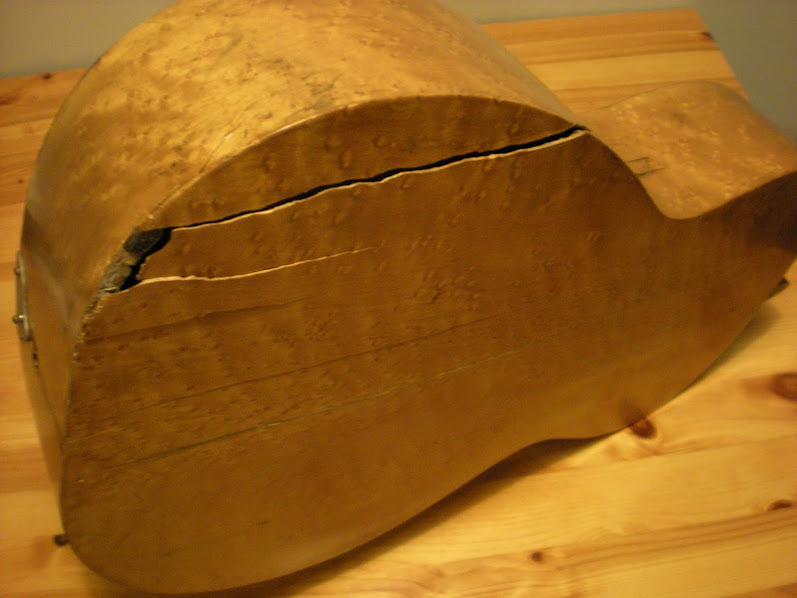

The back and sides are in pretty sad shape, from what looks like wounds from dryness/shrinkage.

And the label, which is still a mystery to me. Google did not help me on that one.
Anyone has a clue? idunno

I don't know if the tuning machines were original, but I know they were a bad idea... This is not going to be an easy repair.

Following in next post


Last edited by Johny on Mon Feb 11, 2013 9:44 pm, edited 2 times in total.

Top
 Profile

PostPosted: Mon Feb 11, 2013 8:29 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
I first remove the fretboard. I would have liked to keep it, but sadly it was all dry and full of cracks. Plus it will allow me to put a truss rod in the neck further on.


Then I remove the back, running a razor blade all around. (Thank god this thing is not bound)

This is inside the guitar, with the back coming loose.

The back is off, pretty cleanly I should add.

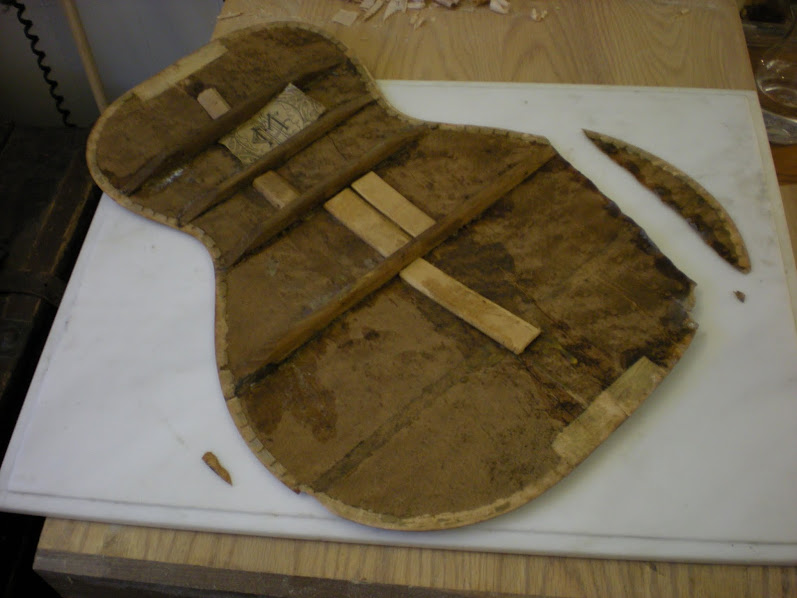

And that allows for a good look on the top bracing. Interesting slanted/ladder bracing. Any thoughts of its origin or period?

To be continued...


Top
 Profile

PostPosted: Mon Feb 11, 2013 8:37 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
After removing the braces and cleats on the back:

Then I glue the cracks shut, one by one, and glue a strip of birch (it was what I had laying around) on the inside for support, as I suspect these cracks to be somewhat unstable.

I had to fashion some pillars to close this last one.

And had some fun carving this little piece to replace a missing bit.

The back is now in one piece.

To be continued


Top
 Profile

PostPosted: Mon Feb 11, 2013 8:44 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
The side was busted, what I suspect to be a "key in the pocket" crack, on the waist, treble side. It was glued at one time in its history, but was rather uneven and scary to look at. So I undid the pieces.

And glued them back correctly.

I also glued a birch shaving from my plane on the inside of the cracked side, (visible on the next picture) and also glued in side braces for good luck.

Next post is about getting the neck out.


Last edited by Johny on Mon Oct 07, 2013 10:25 am, edited 2 times in total.

Top
 Profile

PostPosted: Mon Feb 11, 2013 8:57 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
This is the espresso machine that my ex girlfriend keeps trying to get back from me. beehive

Worked really well to send some steam in the neck pocket, after some modifications.

And the mystery continues: in the neck pocket, a stamped number. 367. Any educated guess about this one?

Next step is to graft on a new headstock, as to keep as much original wood as possible and while assuring the integrity of the joint. I decided to do a V joint, 120 degrees, and used African Mahogany for the graft, as I had some around and thought it would look ok.

Gives me something like this:

That I glue like this:


Top
 Profile

PostPosted: Mon Feb 11, 2013 9:17 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
At this point I drilled a hole and glued a maple dowel in the heel, for it to accept the conversion to bolt-on I have in mind.

I also worked on blending the curves from the neck to the grafted headstock.

And glued Macassar ebony plates on both faces of the headstock, then blended them in again.

Glued on threaded inserts.

And I'm quite relieved to see this neck holding on the guitar after this conversion that some might perceive as a heresy...


Last edited by Johny on Mon Oct 07, 2013 10:25 am, edited 2 times in total.

Top
 Profile

PostPosted: Mon Feb 11, 2013 9:26 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur

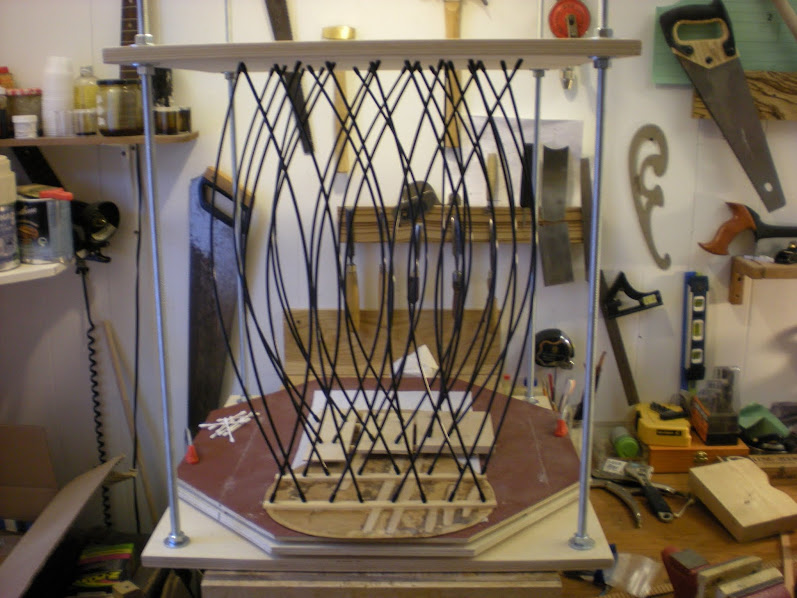

I radiused and glued the back bracing with the help of my home made radius dish and go-bar deck:

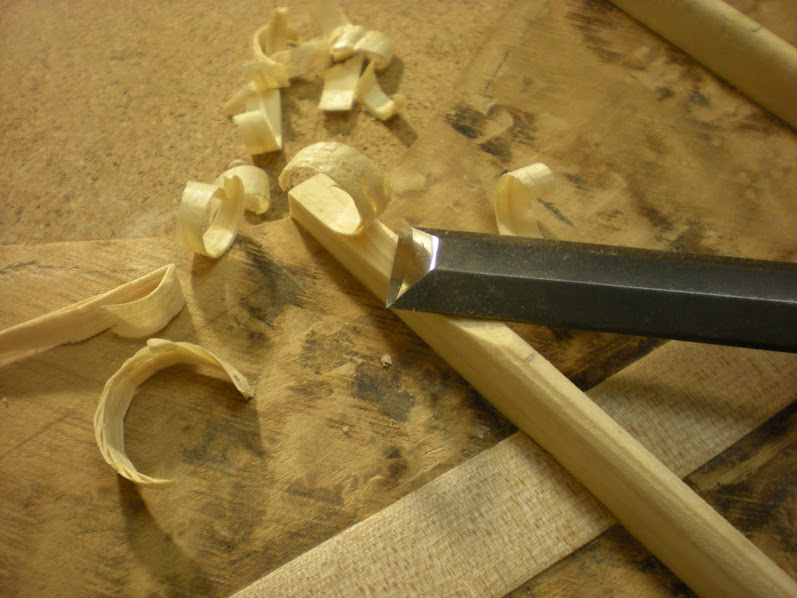

Carving braces with a sharp chisel is one satisfying thing.

Glued the back on with a couple of spool clamps.

And slowly worked the top off with a razor blade.
I really hesitated before deciding to remove the top, but I figured, with my level of experience (pretty much none), I would be better off to work on the free top, have a good feel of it and have better access to repair cracks and glue braces etc. So off came the top.



Last edited by Johny on Mon Feb 11, 2013 10:55 pm, edited 1 time in total.

Top
 Profile

PostPosted: Mon Feb 11, 2013 9:33 pm
Very cool! Lots of learning to be had with a project like that


Top


PostPosted: Mon Feb 11, 2013 9:41 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
Finally (last post for tonight), after a lot of debate with myself, I decided to convert this guitar to a X braced top.

Here's my reasoning: I figure this guitar was orinally made for gut strings, or perhaps for steel strings but with a floating bridge / tailpiece design. The top was distorted, the action was high. Guitar bracing evolved for a good reason... right? My compromise is to brace the top lightly, as to make the guitar able to handle both gut strings (new synthetics like nylgut) and low tension silk and steel strings.

So I aim to follow the Scott Antes parlor plan, with the visual cues from pictures of old 19th century Martin guitars.

This is the bracing traced on:

So, this is pretty much where I am today. I think that the project has went smoothly so far and I hope it continues so.

Do you guys see any incoming pitfalls? Some mistakes I have made?
Any of you know what can this guitar be? My bet is a 1890's to 1930's american made guitar from a small maker, but I sure can be wrong.

Thanks for having a look



These users thanked the author Johny for the post: prd (Tue Mar 04, 2014 3:08 pm)
Top
 Profile

PostPosted: Mon Feb 11, 2013 11:35 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Apr 23, 2012 9:50 am
Posts: 496
First name: Phil
Last Name: Hartline
City: Warrior
State: Alabama
Country: USA
Focus: Build
Status: Amateur
Hey, great work! Can't wait to see how this one turns out. One word of advice though, you mention the Antes parlor plan for the bracing. Double check the drawing, since the view of the top bracing uses hidden lines. In other words, you may be getting a reversed image of the bracing, which means the long diagonal brace toward the big end might be going the wrong way.

Definately worth a close look!

_________________
Phil

http://www.oleninstruments.com

"Those who tilt at windmills are only considered insane by those who can't see the dragon."


Top
 Profile

PostPosted: Tue Feb 12, 2013 1:42 am
Offline
Cocobolo
Cocobolo

Joined: Sat May 02, 2009 10:53 pm
Posts: 250
First name: Mitch
Last Name: Johnson
City: Little Falls
State: Minnesota
Zip/Postal Code: 56345
Country: USA
Focus: Build
Status: Amateur
Yup...Looks like it's braced for a lefty to me. Since the words are not mirrored images on the plans in the background, it does appear to be backwards. The way I always remember is that when you're holding the guitar (or not) the open ends of the braces (not connected to the X) are on the bass side. For me it always makes sense that the bass side should be more free to move. Also, I've heard that in general the Antes plans are pretty over braced. Do some looking on parlor bracing dimensions in the forum archive. I seem to recall there being a thread talking about x brace and other brace widths and heights. Great job so far though! I love watching these threads [:Y:]


Top
 Profile

PostPosted: Tue Feb 12, 2013 1:42 am
Offline
Cocobolo
Cocobolo

Joined: Sat May 02, 2009 10:53 pm
Posts: 250
First name: Mitch
Last Name: Johnson
City: Little Falls
State: Minnesota
Zip/Postal Code: 56345
Country: USA
Focus: Build
Status: Amateur
Whoops...Double post


Top
 Profile

PostPosted: Tue Feb 12, 2013 6:44 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Wed Sep 24, 2008 8:55 pm
Posts: 3820
Location: Taiwan
First name: Tai
Last Name: Fu
City: Taipei
Country: Taiwan
Focus: Repair
Status: Semi-pro
Very similar to those Stellas I have restored for a customer before. I wish I was free to do as I please and convert them to X brace and all, but first of all the cost would have been prohibitive to the customer, but he also wanted to preserve its originality as much as possible so I had to work with that limitation in mind. It's something to keep in mind if you are doing a paid restoration job...

And sometimes for whatever reason, the repair doesn't hold and I had to patch them back up again... happened to the 12 string where a new back crack somehow developed.

_________________
Cat-gut strings are made from kitten guts, stretched out to near breaking point and then hardened with grue saliva. As a result these give a feeling of Pain and anguish whenever played, and often end up playing themselves backwards as part of satanic rituals.

Typhoon Guitars
http://www.typhoon-guitars.com


Top
 Profile

PostPosted: Tue Feb 12, 2013 8:51 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Tue May 13, 2008 10:44 am
Posts: 6262
Location: Virginia
You do good work [:Y:]

I just built a parlor based on a C. Bruno which dated to about 1900 maybe late 1800's and it had that same bracing pattern. Like you I decided to go with an X-Brace because I figured it was meant for gut strings as well. Just be careful to not over brace it. And IDK if you mentioned it or not but with the X-Brace I'd do without the tail piece and use a pinned bridge instead.


Top
 Profile

PostPosted: Tue Feb 12, 2013 9:21 am
Offline
Contributing Member
Contributing Member

Joined: Thu Apr 19, 2012 11:10 am
Posts: 522
First name: Martin
Last Name: Kelly
City: Tampa
State: FL
Zip/Postal Code: 33634
Country: USA
Focus: Build
Status: Amateur
Jan-Alexis,
very nice work; [:Y:] don't think I would have attempted such repairs. It's a very interesting project, can't wait to see if someone can help you with the history on this one Eat Drink ; the label looks pretty distinctive.
Marty


Top
 Profile

PostPosted: Tue Feb 12, 2013 10:28 am
Offline
Koa
Koa
User avatar

Joined: Thu Aug 25, 2005 4:49 pm
Posts: 1209
Location: Ukiah, CA
Antes plans are known for their over bracing. Make sure the x braces and tone bar are no wider than 1/4".

_________________
Ken Franklin
clumsy yet persistent
https://www.kenfranklinukulele.com


Top
 Profile

PostPosted: Tue Feb 12, 2013 6:17 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
Oh! Well I'm really grateful, for it would have been a shame to brace this thing "upside down".
Thanks for all the comments also, I take good notes and will make sure to go as lightly as possible on the bracing.
And yes, I plan to make a standard pinned bridge. Actually I designed something, my twist on the pyramid design. I'll try to make it and see how it turns out.

Thanks again, I'll make sure to post further progress pics.


Top
 Profile

PostPosted: Wed Feb 13, 2013 11:54 am
Offline
Mahogany
Mahogany

Joined: Thu Jun 09, 2011 2:08 pm
Posts: 72
First name: David
Last Name: Schneider
City: Silvis
State: IL
Zip/Postal Code: 61282
Country: USA
Focus: Build
Status: Semi-pro
Just a question about the bracing. Does anyone know if the big companies (Martin, Guild,Gibson) reversed the bracing when they made a lefty or just install a left handed bridge?


Top
 Profile

PostPosted: Wed Feb 13, 2013 1:31 pm
Offline
Koa
Koa
User avatar

Joined: Thu Dec 18, 2008 11:42 am
Posts: 1135
Location: Hudson, MA
First name: Kevin
Last Name: Quine
City: Hudson
State: MA
Country: Usa
Focus: Build
Status: Amateur
Wow...great looking repair jobs. You must have the patience of Job to do all that
Its a pretty little guitar. Hope it's worth the effort


Top
 Profile

PostPosted: Wed Feb 13, 2013 4:17 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Wed Oct 08, 2008 11:36 am
Posts: 7472
Location: Southeast US
City: Lenoir City
State: TN
Zip/Postal Code: 37772
Country: US
Focus: Repair
Reversing the bracing doesn't matter, in my opinion. I've got a size 0 done by the Antes plan - lightened considerably - but reversed it before I caught it. The box sounds just fine.

_________________
Steve Smith
"Music is what feelings sound like"


Top
 Profile

PostPosted: Sun Mar 10, 2013 12:58 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
I had some time to work on the top bracing. Here's what I've got done.

First a fun macro shot of a cleat I'm shaping.

Then the heart of the subject:

I shaved the X to 0.4" tall.


Keeping in mind my goal is to have it handle synthetic gut or silk and steel type of strings, do you see any risk of imminent implosion?
Any word of wisdom before I close the box?

Thanks again!


Top
 Profile

PostPosted: Sun Mar 10, 2013 2:35 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Mon Feb 25, 2013 4:34 pm
Posts: 223
First name: Kent
Last Name: Wilkinson
City: New Carlisle
State: Ohio
Zip/Postal Code: 45344
Country: USA
Focus: Build
WOW!


Top
 Profile

PostPosted: Sun Mar 10, 2013 3:02 pm
Offline
Koa
Koa

Joined: Mon Jun 30, 2008 1:06 am
Posts: 508
First name: Greg
Last Name: B
City: Los Angeles
State: California
I'd be inclined to add another transverse brace in the upper bout above the popsicle graft. .25" wide is probably sufficient. The head block is rather shallow. I've retopped and/or rebraced a few similar old beaters, and they all tend to want to rotate the headblock into the soundhole with standard ladder bracing. That said, it'd likely be OK for nylon strings as is.

You have a slight gap in the glue line of the bridge plate. Easier to fix it now than later... I always wet the top of bridgeplates when gluing them on to help prevent this.

Other that that, looks good to me. :) The surprising thing to me is how little converting to X bracing changes the sound. You'll get a bit more bass and a slightly richer sound, but IME the basic character remains the same. Tends to make me believe the idea that most of the sound is in the top wood and the actual shape of the guitar.


Top
 Profile

PostPosted: Sun Mar 10, 2013 5:29 pm
Offline
Koa
Koa

Joined: Sun Sep 16, 2007 1:27 pm
Posts: 716
Location: United States
First name: Dave
Last Name: Livermore
State: Minnesota
Focus: Build
Status: Semi-pro
Very very cool thread. Thanks for taking the time to post it all.


Top
 Profile

PostPosted: Sun Mar 10, 2013 6:00 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Wed Jun 29, 2011 11:06 pm
Posts: 44
First name: matt
Last Name: zimbelman
City: Durham
State: North Carolina
Zip/Postal Code: 27705
Focus: Build
Status: Amateur
Very cool!


Sent from my iPad using Tapatalk HD

_________________
http://www.unit5woodworks.com


Top
 Profile

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 76 posts ]  Go to page 1, 2, 3, 4  Next

All times are UTC - 5 hours


Who is online

Users browsing this forum: Colin North and 13 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
phpBB customization services by 2by2host.com
