Hello All,

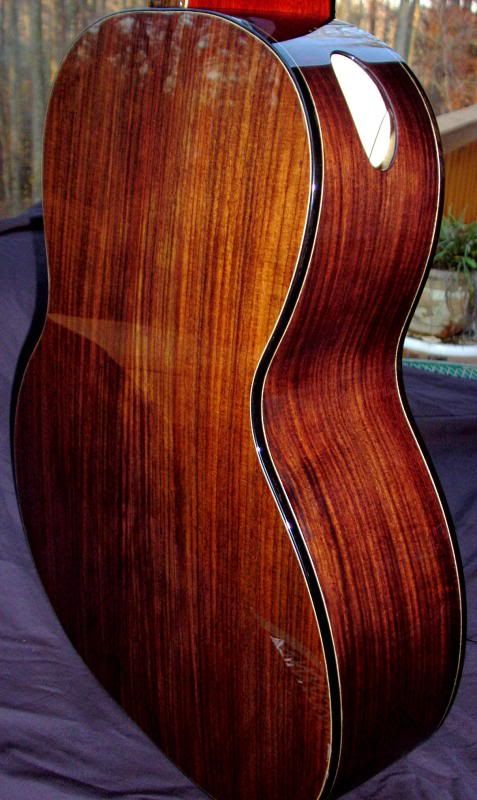

I haven't shared any pics for a while, this is an EIR guitar that I really loved, when the guitar was commissioned I thought, well it might be a boring EIR build, but it turned out to be one of my all-time favorite guitars. By the way, it's a Sinker Redwood/Lutz Spruce double-top, 000-13 fret.








Cheers,
Greg

_________________
Gwaltney Guitars

Nice looking guitar Greg; I'm thinking of adding a sound port to a build soon.
best regards,
jack

That's stunning, Greg!

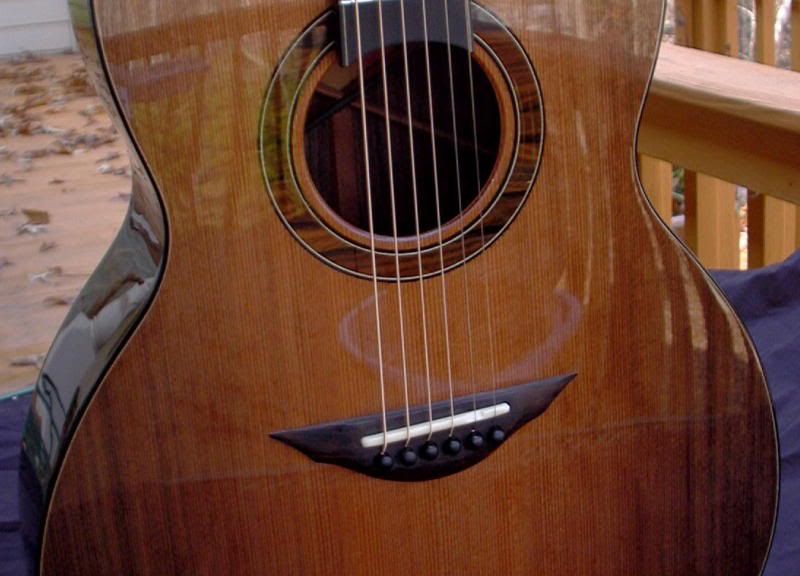

I like the rosette... I have done a couple like that now, and I really prefer solid wood and purfling to the standard rosette. Classy!

_________________
Ken Mitchell
Durham, NC

A few other pics I found.

_________________
Gwaltney Guitars

That is truly amazing. I love seeing all the cool guitars on this forum. Congrats.

_________________
http://www.booneguitars.com
https://www.facebook.com/pages/Stephen-Boone-guitar-builder/488208541257210

Beautiful guitar.

Can I ask how your neck joint works? It's hard for me to tell, but it looks like the fretboard entirely floats over the body.


Bob

What is that headplate? It's beautiful!

Steve

_________________
From Nacogdoches...the oldest town in Texas.

http://www.stephenkinnaird.com

I'm with Steve K., that headplate is awesome stuff. Do tell. And I love all the other pics too.

_________________
"Building guitars looks hard, but it's actually much harder than it looks." Tom Buck

Great work Greg!

_________________
"An adventure is only an inconvenience rightly considered. An inconvenience is an adventure wrongly considered." G. K. Chesterton.

Greg - Stunning guitar! I have been dreamin of doing exactly what you did with the neck/body joint and carbon fiber trusses. Would you share some pics of her innards if you have them? edit add - It looks like you did something similar to Dave White of England inside or did your inspiration come from another source?

Many thanks,

Steve

_________________
Steve Walden
Aspiring Builder,
Bartlesville, OK

Nice work!

_________________
Jim Watts
http://jameswattsguitars.com

Stunning - its a real pleasure seeing these stunning woprks on here - really aspirational stuff. Would be interested to hear how you go about the process with respect to the elevated soundboard - have played a few Mcphearsons with this and was very taken with the tone.

Very cool guitar Greg - I want to hear about the head plate too!!!!

Hey thanks guys!

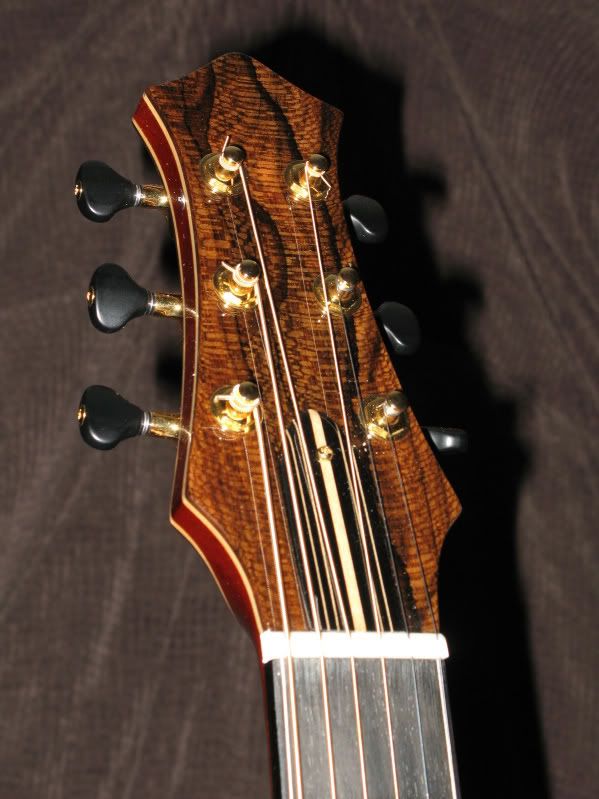

The headplate and rosette are ziricote.....looks even better in person!

The neck/body is a butt joint with two bolts, the neck has two CF bars full length to help with the raised fingerboard. I also use 6 or 7 CF truss rods on the inside(I'll look for some pics) which I feel are very important to use with the raised fretboard concept....my inspiration for this came from several gents doing this type of work, Dave White was one of them.(though I chose to modify it a bit by adding some additional CF rods). I actually built the first one using an adjustable neck joint, but that didn't sit well with me so I decided to go this route. The CF rods make the rim/body extremmly stiff, add that to the double sides and this system is pretty solid. I've built 4 or 5 like this now and really like what I'm getting tonally, more difficult and time-consuming, but in my mind worth it.

Cheers,
Greg

_________________
Gwaltney Guitars

Killer guitar, Greg! Fine craftsmanship on display!

_________________
Waddy

Photobucket Build Album Library

Sound Clips of most of my guitars

That looks fantastic Greg. I really like the look of that sinkwood... What's that gorgeous finish?

_________________
I'd like to be able to prove, just for once, that money wouldn't make me happy...

Ah yes, thanks to Joe White for another wonderful finish!

Greg

_________________
Gwaltney Guitars

Nice work Greg! Love that redwood!

Chuck

_________________
_________________

Thanks...you know this stuff looks great and sounds even better!

Greg

_________________
Gwaltney Guitars

Looks great, Greg. I'm working on similar stuff with CF structural elements and an elevated, floating fretboard extension. I haven't seen your work before (that I recall), but I've been getting a lot of ideas and input from others, such as Rick Turner, as well as regulars here, like Kent Chasson, Laurent Brondel, etc.

One of the issues that comes up is flexing of the heel. Rigid as the neck block and the body itself may be, with the FB extension floating, flexing of the heel can bite you in the butt. Without the added meat of a tenon, a butt joint is all the more vulnerable. But you've built several of these successfully. What have you done to make the heel rigid and strong enough?

I would also be very interested to see what you came up with for the design of the internal struts.

Thanks -

_________________
Todd Rose
Ithaca, NY

https://www.dreamingrosesecobnb.com/todds-art-music

https://www.facebook.com/ToddRoseGuitars/

Sweet guitar, Greg. Pardon my ignorance, what is EIR?

_________________
http://www.casperguitar.com

It stands for East Indian Rosewood
