PostPosted: Sun Mar 10, 2013 7:46 pm
Offline
Koa
Koa

Joined: Sat Aug 04, 2007 10:37 am
Posts: 590
Location: United States
First name: Michael
Last Name: Shaw
City: Phila
State: PA
Zip/Postal Code: 19125
Country: United States
Nice job Johny. Since it isn't a rare valuable guitar the bolt neck conversion is fine in my opinion. Mike

_________________
Guitars, guitars and more guitars.


Top
 Profile

PostPosted: Sun Mar 10, 2013 7:58 pm
Offline
Koa
Koa

Joined: Sat Apr 19, 2008 10:08 pm
Posts: 1958
Location: Missouri
First name: Patrick
Last Name: Hanna
State: Missouri
Country: USA
Joan-Alexis,
I'm watching with great interest. I am very impressed with the way you brought the back and sides back together and fixed those issues. I am not qualified to comment on your bracing scheme for the top, but I personally have no problem with your conversion to the x-brace. I must say, however, that your re-set neck looks a little "cranked" to the treble side in your photo. And if I read you accurately, you are planning a conversion to a pinned bridge. I am not sure about that one. It'll probably work well with your x-brace scheme, but you're going to have holes in your top, so there's no going back.........

I kind of like that funky old tailpiece. I believe I'd have tried to work with that. But it's not my guitar. It's yours. And you are showing me some real craftsmanship here. We will leave the restoration ethics issues to others.

Patrick


Top
 Profile

PostPosted: Mon Oct 07, 2013 10:08 am
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
I had some more time to work on the old guitar.

I put a light coat of amber shellac to the inside of the box.

And then sanded the upper bout flat before closing the box.


To be continued in next post.


Top
 Profile

PostPosted: Mon Oct 07, 2013 10:19 am
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
Next came the daunting task of binding the box.

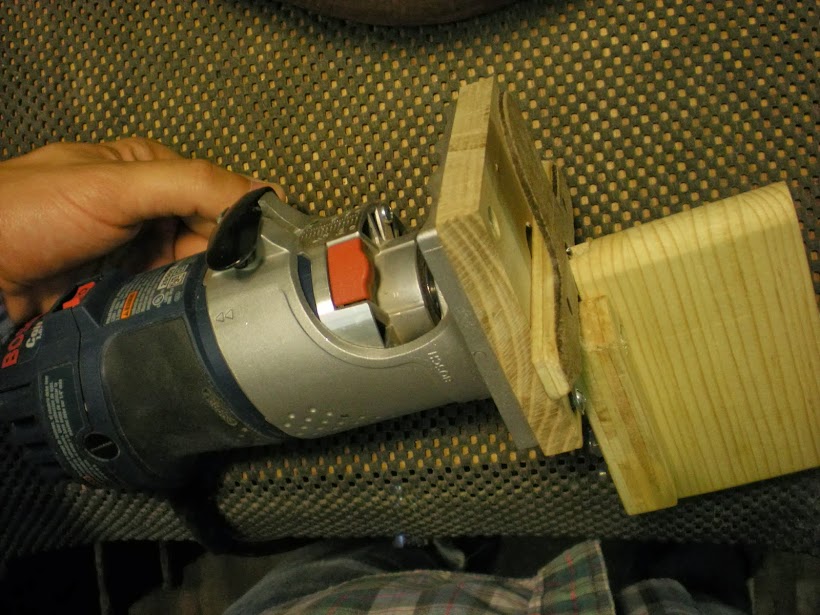

I used this jig that I bought from Kenneth Michael.

And it did a pretty good job actually. I cleaned the channel with my veritas mini rabbet plane.

Glue up. Ebony binding with BWB purfling and a stripe of bloodwood veneer, to tie up with the original rosette.

Things are going pretty smoothly actually.

I'm currently working on the headstock and will soon start shaping the bridge. I will post updates when it's worthy.

Thanks for looking.


Top
 Profile

PostPosted: Mon Oct 07, 2013 11:00 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Wed Jan 13, 2010 12:46 am
Posts: 1247
First name: Beth
Last Name: Mayer
City: Tucson
State: AZ
Country: United States
Focus: Build
Status: Amateur
I am really glad I subscribed to this post at the beginning. I'm learning a lot, and have a similar vintage broken parlor guitar that I have dreams of some day restoring (or really, renovating, because I don't care if it retains it's historical structure). I think you're doing a brilliant job of marrying old to new. Can't wait to see your new bridge!


Top
 Profile

PostPosted: Mon Oct 07, 2013 11:14 am
Offline
Brazilian Rosewood
Brazilian Rosewood
User avatar

Joined: Wed Sep 24, 2008 8:55 pm
Posts: 3820
Location: Taiwan
First name: Tai
Last Name: Fu
City: Taipei
Country: Taiwan
Focus: Repair
Status: Semi-pro
Some of these parlors are so badly damaged that the only thing I'm concerned about when restoring them is making them playable. There's a lot that needs to be done to them and it's impossible to keep them "original".

_________________
Cat-gut strings are made from kitten guts, stretched out to near breaking point and then hardened with grue saliva. As a result these give a feeling of Pain and anguish whenever played, and often end up playing themselves backwards as part of satanic rituals.

Typhoon Guitars
http://www.typhoon-guitars.com


Top
 Profile

PostPosted: Mon Oct 07, 2013 12:08 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Mon Jul 27, 2009 7:52 am
Posts: 4524
First name: Big
Last Name: Jim
State: Deep in the heart of Bluegrass
Country: usa
Focus: Build
Status: Amateur
[:Y:] [:Y:] I love working on these older guitars and seeing them brought back to life . Sweet work ! [clap]

_________________
The Shallower the depth of the stream , The Louder the Babble !
The Taking Of Offense Is the Life Course Of The Stupid One !
Wanna Leave a Better Planet for our Kids? How about Working on BETTER KIDS for our Planet !
Forgiveness is the ability to accept an apology that you will probably NEVER GET
The truth will set you free , But FIRST, it will probably Piss you Off !
Creativity is allowing yourself to make Mistakes, Art is knowing which ones to Keep !
The Saddest thing anyone can do , is push a Loyal Person to the point that they Dont Care Anymore
Never met a STRONG person who had an EASY past !
http://wiksnwudwerks.blogspot.com/
http://www.facebook.com/groups/GatewayA ... rAssembly/


Top
 Profile

PostPosted: Mon Oct 07, 2013 4:38 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Sun Mar 06, 2011 12:04 am
Posts: 5895
First name: Chris
Last Name: Pile
City: Wichita
State: Kansas
Country: Good old US of A
Focus: Repair
Status: Professional
Excellent job so far.
I am most impressed.

_________________
"Act your age, not your shoe size" - Prince


Top
 Profile

PostPosted: Sun Oct 20, 2013 10:08 am
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
Alright, some more progress.

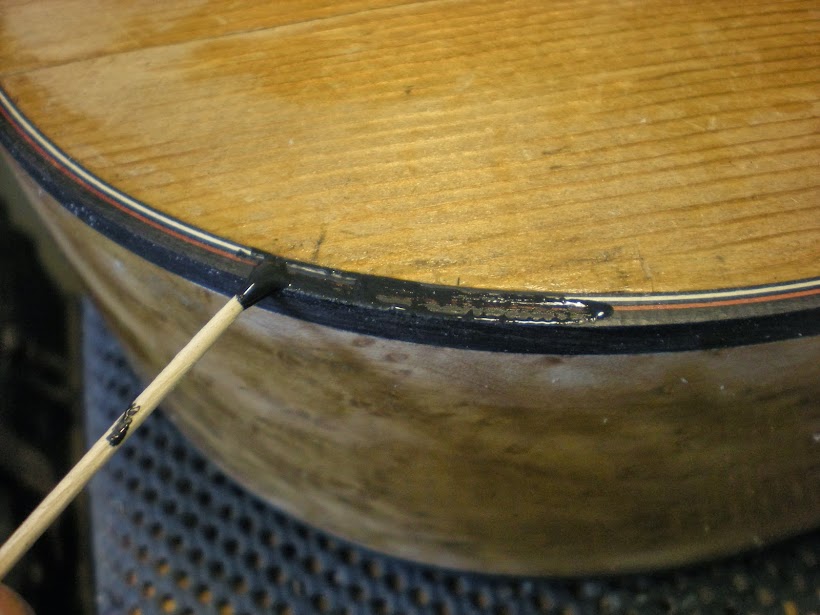

Gap filling with white glue + black pigment.

Drilling tuner holes.

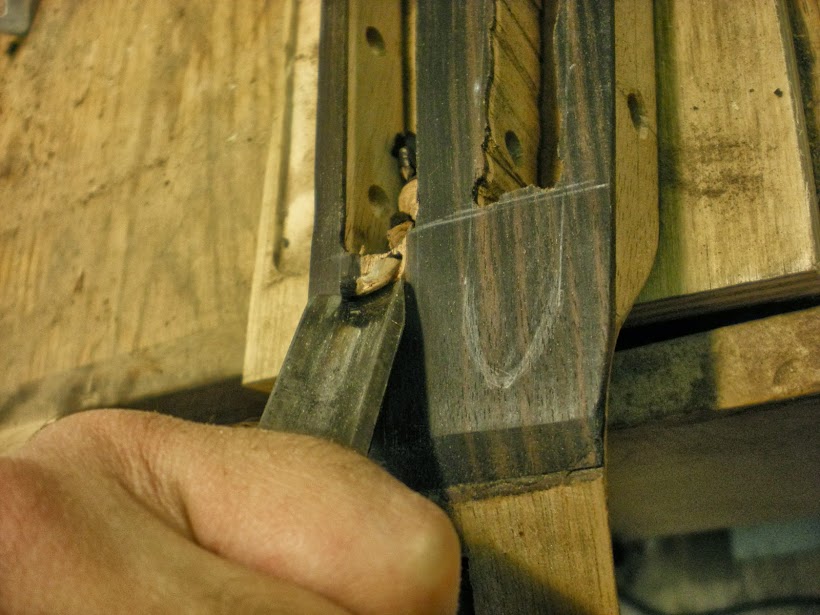

I cut the slots with a coping saw, then cleaned the slots with the bosch.

Shaping the ramps.

Done headstock.

To be continued.


Top
 Profile

PostPosted: Sun Oct 20, 2013 10:13 am
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
I drilled through the UTB for accessing the trussrod.

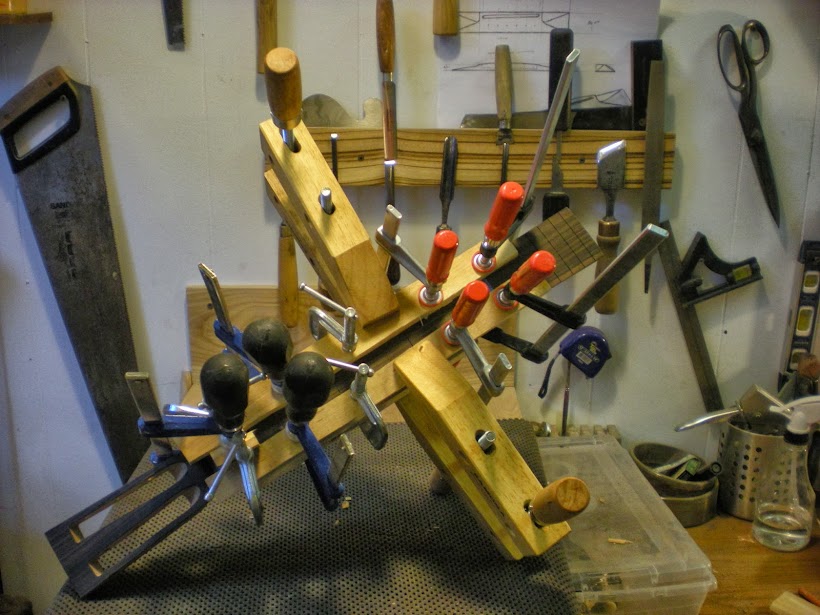

Glued the fretboard on.

Then began working on the bridge blank. First cutting to line.

Here is my stupidly simple jig for routing the saddle slot.

Template.


Top
 Profile

PostPosted: Sun Oct 20, 2013 10:16 am
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
I used the old Nicholson rasp I bought a few weeks back to shape the wings.

Then worked on the curvature of the blank itself.

With this end result:


Top
 Profile

PostPosted: Sun Oct 20, 2013 10:20 am
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
Finally for today, I sanded and polished the fretboard, then knocked the edge off the fretslots with a triangle file.

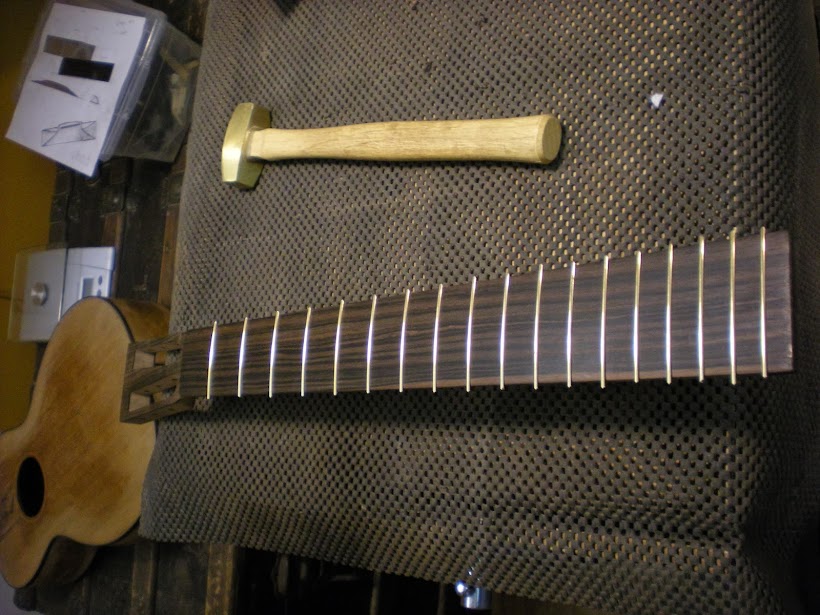

Then hammered the frets in.



Top
 Profile

PostPosted: Sun Oct 20, 2013 11:14 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Sun Mar 06, 2011 12:04 am
Posts: 5895
First name: Chris
Last Name: Pile
City: Wichita
State: Kansas
Country: Good old US of A
Focus: Repair
Status: Professional
Looking finer than frog fur!

_________________
"Act your age, not your shoe size" - Prince


Top
 Profile

PostPosted: Sun Oct 20, 2013 1:36 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Wed Jan 13, 2010 12:46 am
Posts: 1247
First name: Beth
Last Name: Mayer
City: Tucson
State: AZ
Country: United States
Focus: Build
Status: Amateur
Amazing!


Top
 Profile

PostPosted: Sun Oct 20, 2013 6:20 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Fri Jul 05, 2013 12:57 pm
Posts: 903
Location: London, England
Focus: Build
Status: Amateur
Love that bridge! (Exquisite work all round of course)


Top
 Profile

PostPosted: Sun Oct 20, 2013 7:06 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
Thanks!

I've been sanding the body back to bare wood today. I should be able to put some finish on this in the next few weeks.

Thanks again for the comments and help, I really appreciate it.

J-A


Top
 Profile

PostPosted: Mon Oct 21, 2013 11:39 am
Offline
Contributing Member
Contributing Member

Joined: Fri Dec 23, 2011 10:17 am
Posts: 295
First name: Linus
City: Brooklyn
State: NY
Zip/Postal Code: 11215
Country: USA
Focus: Build
Status: Amateur
Please keep the pics coming as you have them. And a video of it being played when complete would be great to see.
Beautiful work.


Top
 Profile

PostPosted: Mon Oct 21, 2013 1:23 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Wed Oct 08, 2008 11:36 am
Posts: 7472
Location: Southeast US
City: Lenoir City
State: TN
Zip/Postal Code: 37772
Country: US
Focus: Repair
I also like the looks of the bridge but am a bit confused. I saw on your templates what looked like holes for tying the strings on but you removed all of the material in that area. How do the strings terminate? Or are you using a tailpiece?

_________________
Steve Smith
"Music is what feelings sound like"


Top
 Profile

PostPosted: Mon Oct 21, 2013 6:40 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
SteveSmith wrote:
I also like the looks of the bridge but am a bit confused. I saw on your templates what looked like holes for tying the strings on but you removed all of the material in that area. How do the strings terminate? Or are you using a tailpiece?


Thanks!

Yes I realize the paper template is confusing. It is going to be a standard pinned bridge. The dots on top are there to mark the center of the holes for the bone pins. The other dots that I put on the rear of the bridge was just to align things when I was drawing it.


Top
 Profile

PostPosted: Mon Oct 21, 2013 9:14 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Wed Oct 08, 2008 11:36 am
Posts: 7472
Location: Southeast US
City: Lenoir City
State: TN
Zip/Postal Code: 37772
Country: US
Focus: Repair
Got it. I'm looking forward to seeing how this one turns out.

_________________
Steve Smith
"Music is what feelings sound like"


Top
 Profile

PostPosted: Tue Oct 22, 2013 12:20 pm
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Tue May 13, 2008 10:44 am
Posts: 6262
Location: Virginia
I really dig the bridge too, clever way of doing it also.


Top
 Profile

PostPosted: Sun Oct 27, 2013 2:03 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
A follow-up of the progress on this thing,

Shaped a new heel cap.

Sanded everything to bare wood.

I also dyied this little birch piece to make it less noticeable.

For the finish, I started with brushing a few coats of amber shellac to warm things up. I also dissolved a batch of blond shellac (shown here) that I will use further on to build the finish.


Top
 Profile

PostPosted: Sun Oct 27, 2013 2:07 pm
Offline
Cocobolo
Cocobolo

Joined: Mon Jun 07, 2010 11:14 am
Posts: 109
First name: Jan-Alexis
Last Name: Tremblay
City: Montreal
Country: Canada
Focus: Build
Status: Amateur
First coat on the top.

There is some bearclaw on this top. Interesting.

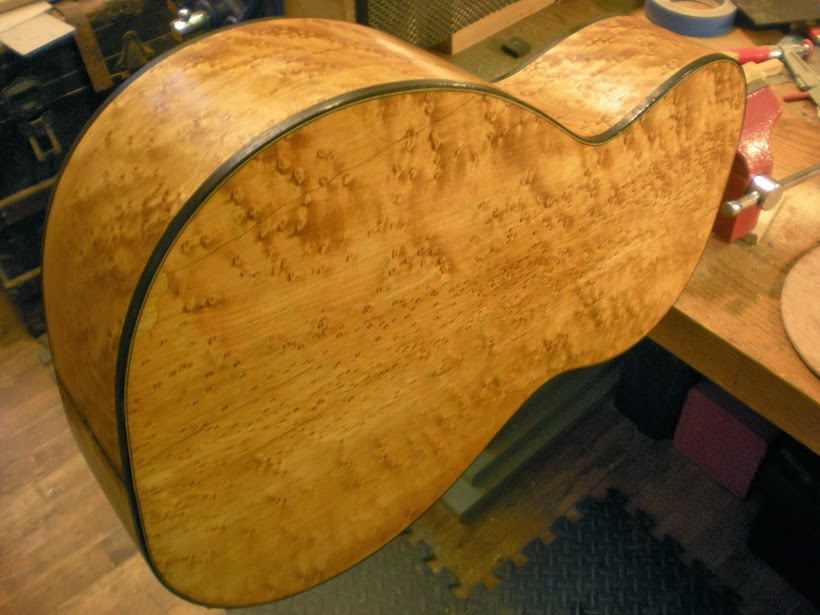

The back is now alive.

And then the neck.

I'm done for today. In the next weeks, I will build coats by brushing on the shellac, sanding back, brush-on more, etc.

Thanks for looking!


Top
 Profile

PostPosted: Sun Oct 27, 2013 2:43 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Sun Mar 06, 2011 12:04 am
Posts: 5895
First name: Chris
Last Name: Pile
City: Wichita
State: Kansas
Country: Good old US of A
Focus: Repair
Status: Professional
It's progressing well, I think.

_________________
"Act your age, not your shoe size" - Prince


Top
 Profile

PostPosted: Sun Oct 27, 2013 8:30 pm
Offline
Mahogany
Mahogany

Joined: Sat Jun 16, 2012 2:37 am
Posts: 62
First name: Dave
Last Name: Tays
Country: canada
Focus: Build
Status: Amateur
Nice work. It's one thing taking wood and turning it into a guitar. But taking trash and making it playable is awesome.


Top
 Profile

Display posts from previous:  Sort by
Post new topic Reply to topic  [ 76 posts ]  Go to page Previous  1, 2, 3, 4  Next

All times are UTC - 5 hours


Who is online

Users browsing this forum: Ken Lewis, rbuddy and 30 guests


You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot post attachments in this forum

Jump to:
Powered by phpBB® Forum Software © phpBB Group
phpBB customization services by 2by2host.com
