Once again, a post of more interest to the newer builders that those with a pile of molds in the corner.

Once I had a template for my OOOO, I though taking a few pics of the mold making process might be interesting. I did not have a sheet of baltic birch, so I used a half sheet of Borg-brand birch ply.

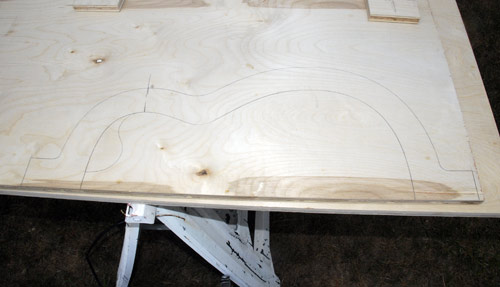

I use a 2" x 2" extension on each end of the mold, so I start the layout of the mold master pattern by placing the body template 4-1/4" or so in from one end of the ply and centerline aligned with one of the straight edges.

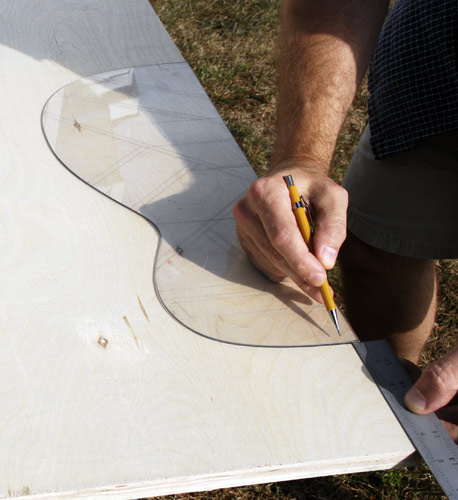

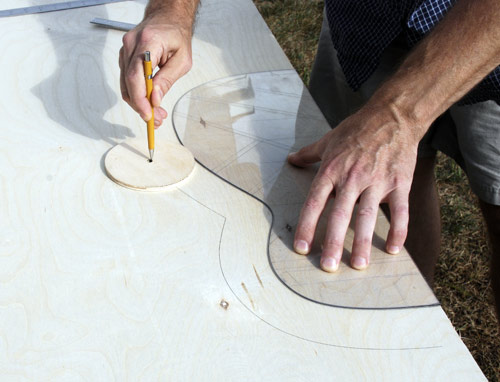

After transferring the outline of the body, I use a 2" radius spacer to lay out the outside of the mold.





A quick fillet where the outside of the mold tucks at the waist avoids a sharp, weak corner.



A combination square makes layout of the 2" x 2" extensions easy - the extensions allow direct clamping of the neck and tail blocks, as well as house the carriage bolt and wing nut mold closures.

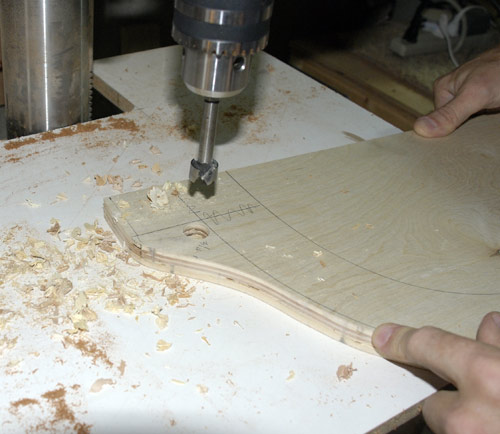

The inside corners at the ends of the mold halves are best shaped with a 3/4" Forstner bit...so I marked the center point to make things a bit easier.

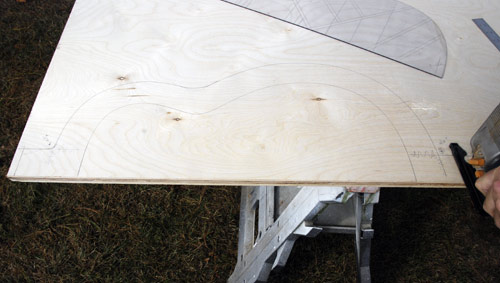

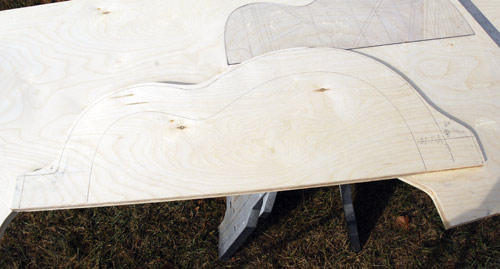

Once layout is complete, I rough cut around the outside with a jigsaw.

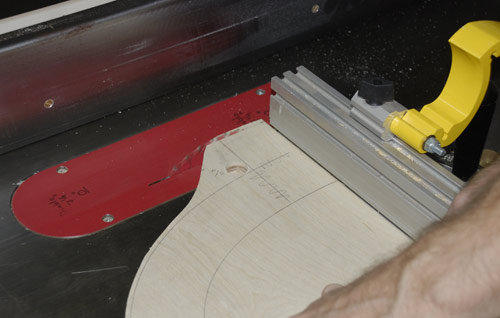

As mentioned earlier, I shape the corners with a 3/4" Forstner, then trim the ends of the blank square on the tablesaw.

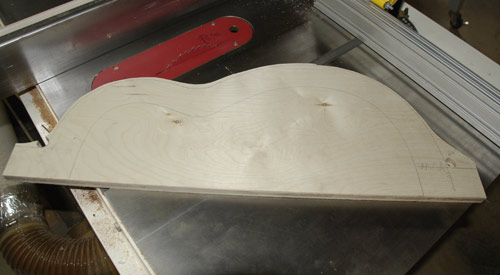

A quick pass through the band saw gets things down to 1/8" outside the line.

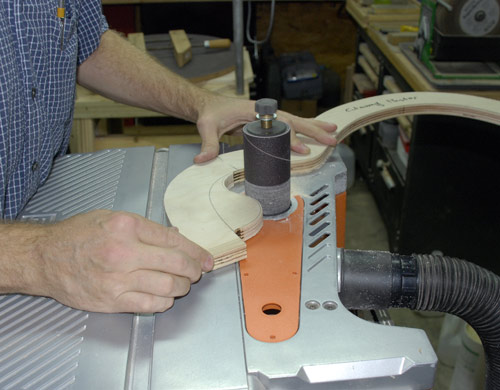

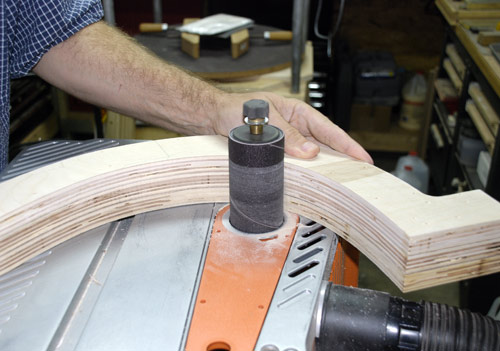

I do final shaping of the master with an oscillating spindle sander, finishing with the 3/4" diameter sleeve.

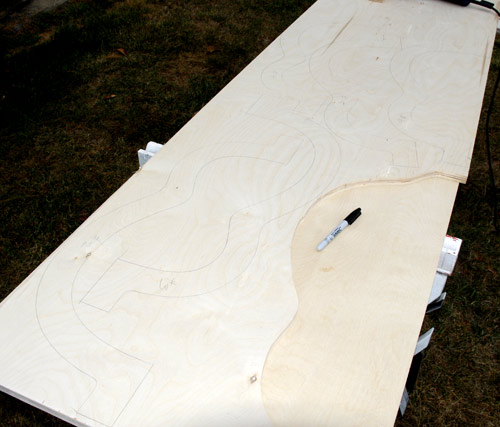

I use the finished master template to lay out the other five laminates for the full body mold sections. These get roughed out with a jig saw and trimmed to 1/8" oversize with the band saw.



Some builders use a full bodied mold for both cutaway and non-cutaway bodies. I prefer a mold that is shaped to the cutaway, so rather than try to get bass and treble sides identical in shape, I start with the master mold as a basis for the cutaway.

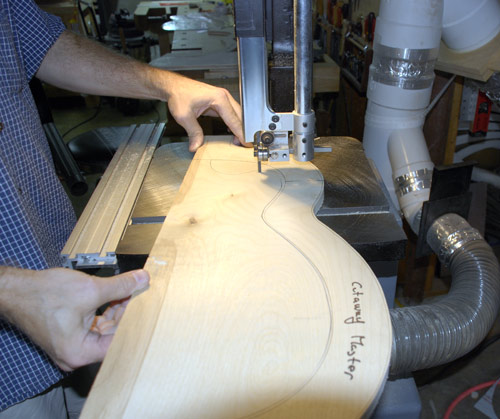

After adding the cutaway profile from the full body template, I rough trim on the band saw.

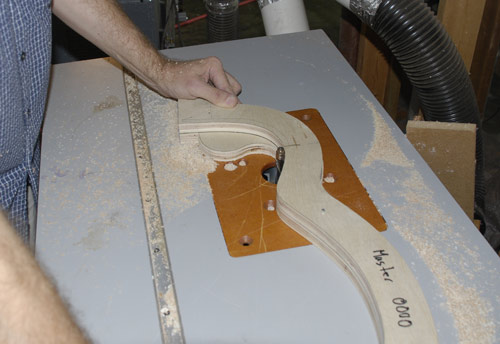

I tack the master template to what will be the cutaway master, and pattern-rout the outside and most of the inside up to the start of the cutaway.

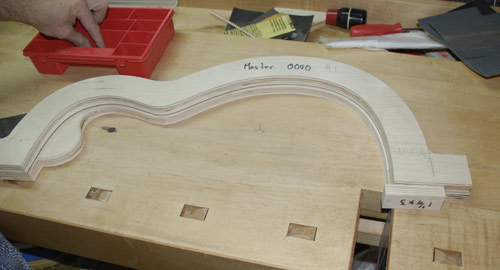

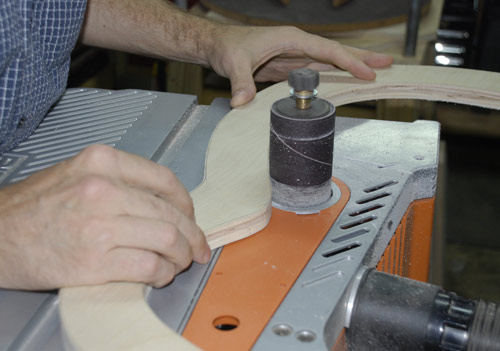

After popping the master off, a little cleanup on the spindle sander gets the cutaway master to final shape.

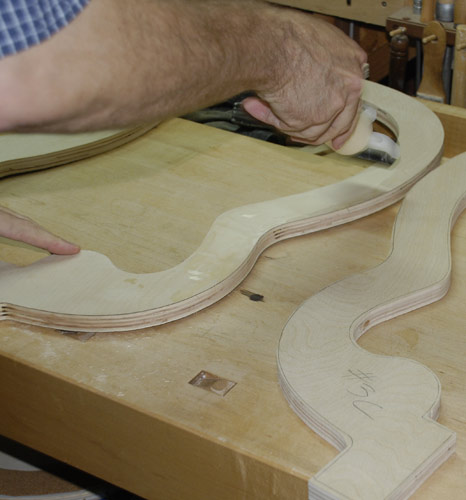

As mentioned, the rough-cut laminates need cleanup on the band saw and a little hand sanding to get rid of any fuzzy edges off the saw.



While the master will function as the center laminate of the bass-side mold sandwich, I needed a duplicate for the treble side. A little pattern routing gives me two net-shape center laminates and four rough-cut outer laminates.

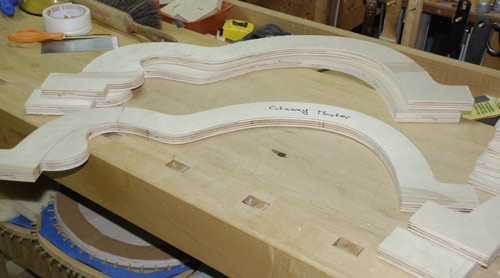

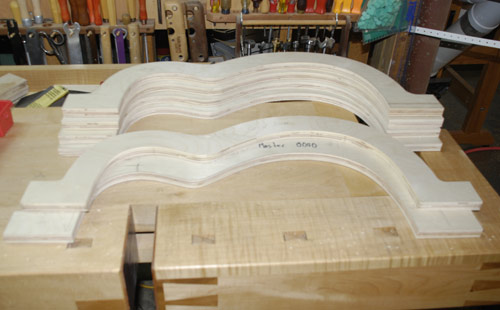

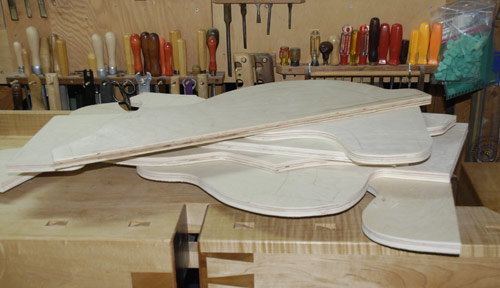

For the cutaway side of the mold, one net-shape master and two rough-trimmed outer laminates complete the prep.

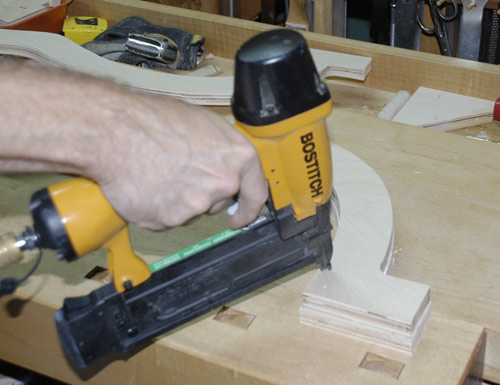

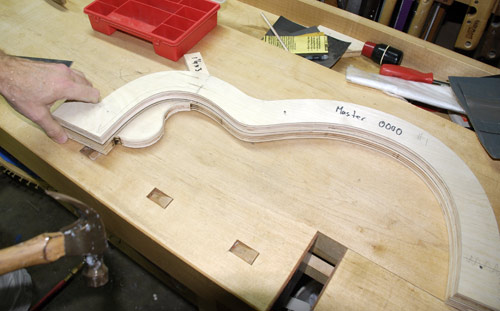

A glue roller makes quick work of getting things ready to nail up without excessive squeeze-out. I use 1-1/4" 18 gauge brads to hold the three lams together, and try to remember to keep nails out of the end sections where my carriage bolts and wing nuts will go.





Once the sandwiches are assembled, I use a pattern router bit to trim the outer laminates to shape.

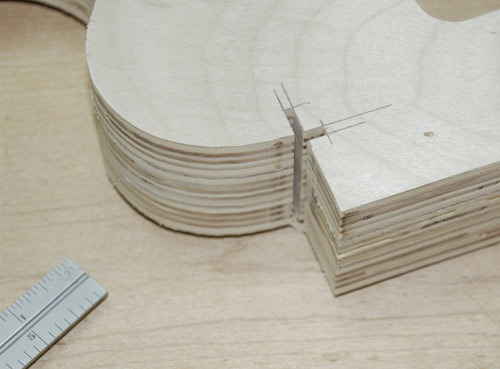

The final cleanup on the cutaway section consists of slotting the neck/cutaway section so that the sides can be run long to get a good shape through the section. This is one idea that Benedetto suggests and that really works.

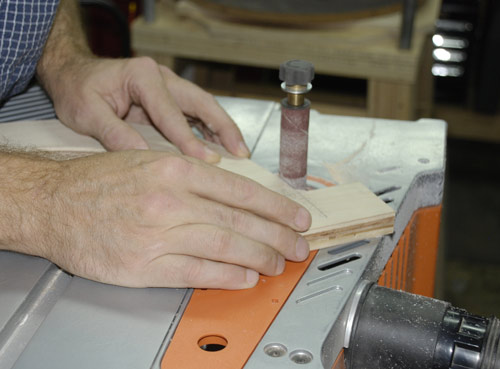

A little clean-up on the spindle sander gets rid of any tearout or roughness.

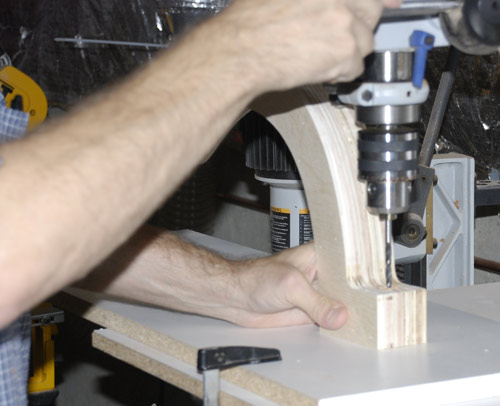

After a quick test fit, I lay out the hole locations for the carriage bolts and wing-nuts, then drill the bass-side mold to function as the reference for holes in the treble-side full body and cutaway mold.

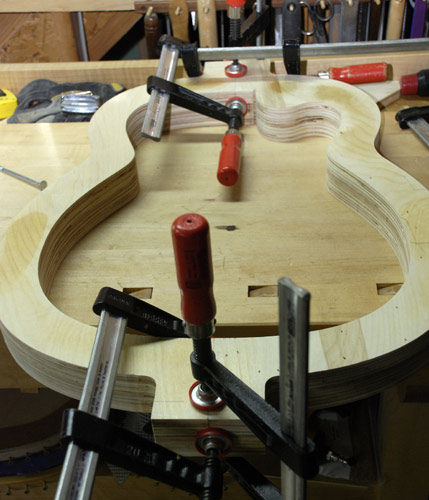

I clamp the bass side mold to the others and transfer the carriage bolt holes, then through-drill to clean up the holes.

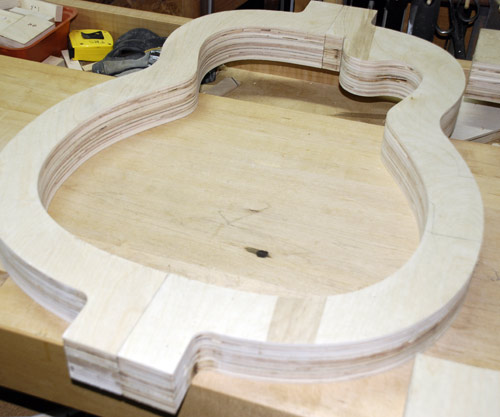

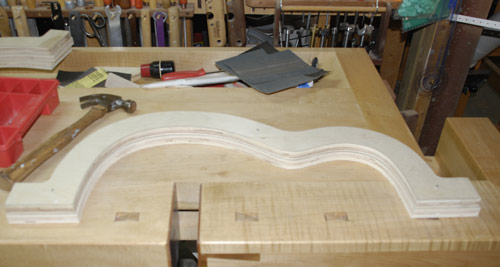

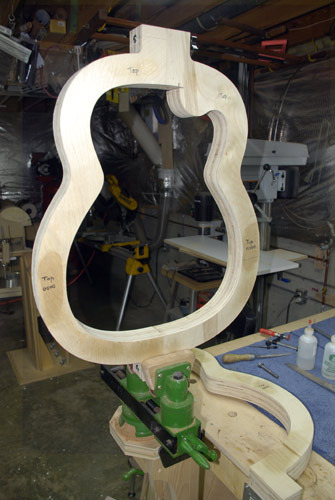

I spot prime with shellac, mark the sides for future reference, and do 2-3 coats of shellac to minimize future glue issues. Other than spreaders, the mold is ready to go.



Next up are solid full-body and cutaway bending molds for the OOOO.
