 Post subject: Side Marker Dots
PostPosted: Sat Oct 24, 2015 4:03 pm
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Fri Dec 14, 2007 3:21 pm
Posts: 3444
Location: Alexandria MN
Over the 15 years I've been messing around with this stuff I have tried all sorts of ways to jig up for side dots but have always just gone back to free handing them after marking the locations. I usually install them after the fretboard is on and leveled just before fretting.

Here is a little trick that works pretty well for that. I usually try to put them all the same distance from the top edge of the fretboard. I like the way that looks. My edges usually come out to around .2" so I measure .1" down from the top. I found that if I wrap some tape around the ruler at the 1" mark thick enough to register on the fretboard edge it makes it easy to get that .1" mark consistent. I mark it with a sharp awl.


_________________
It's not what you don't know that hurts you, it's what you do know that's wrong.



These users thanked the author Terence Kennedy for the post (total 3): cablepuller1 (Mon Oct 26, 2015 4:40 pm) • Alex Kleon (Sat Oct 24, 2015 5:26 pm) • jack (Sat Oct 24, 2015 4:51 pm)
Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Sat Oct 24, 2015 5:47 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Mon Jan 08, 2007 3:47 pm
Posts: 1213
Location: Raleigh, NC
First name: Ringo
Nice tip! To go one step further, even with a good mark made with a center punch I always had trouble getting the holes drilled straight in with no wandering because of the curvature of the fretboard. Then one day I thought to put a little fence up on my drill press like this. Whether the fretboard's on or off the neck, this makes it infinitely easier to get the drill bit straight into the board right on the mark.


You do not have the required permissions to view the files attached to this post.


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Sat Oct 24, 2015 6:11 pm
Offline
Koa
Koa

Joined: Sat May 19, 2007 11:03 am
Posts: 1737
Location: Litchfield MI
Focus: Build
Status: Professional

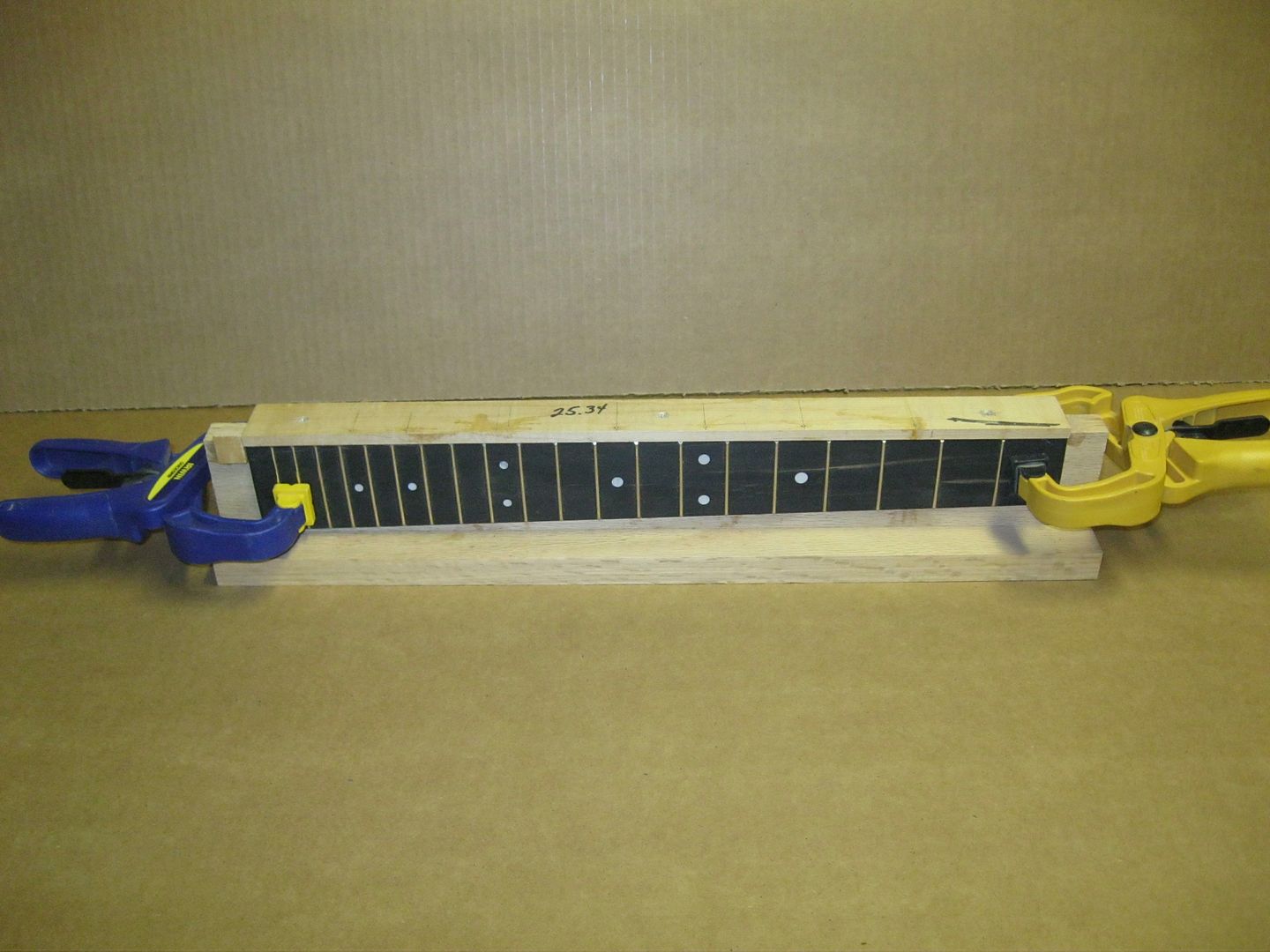

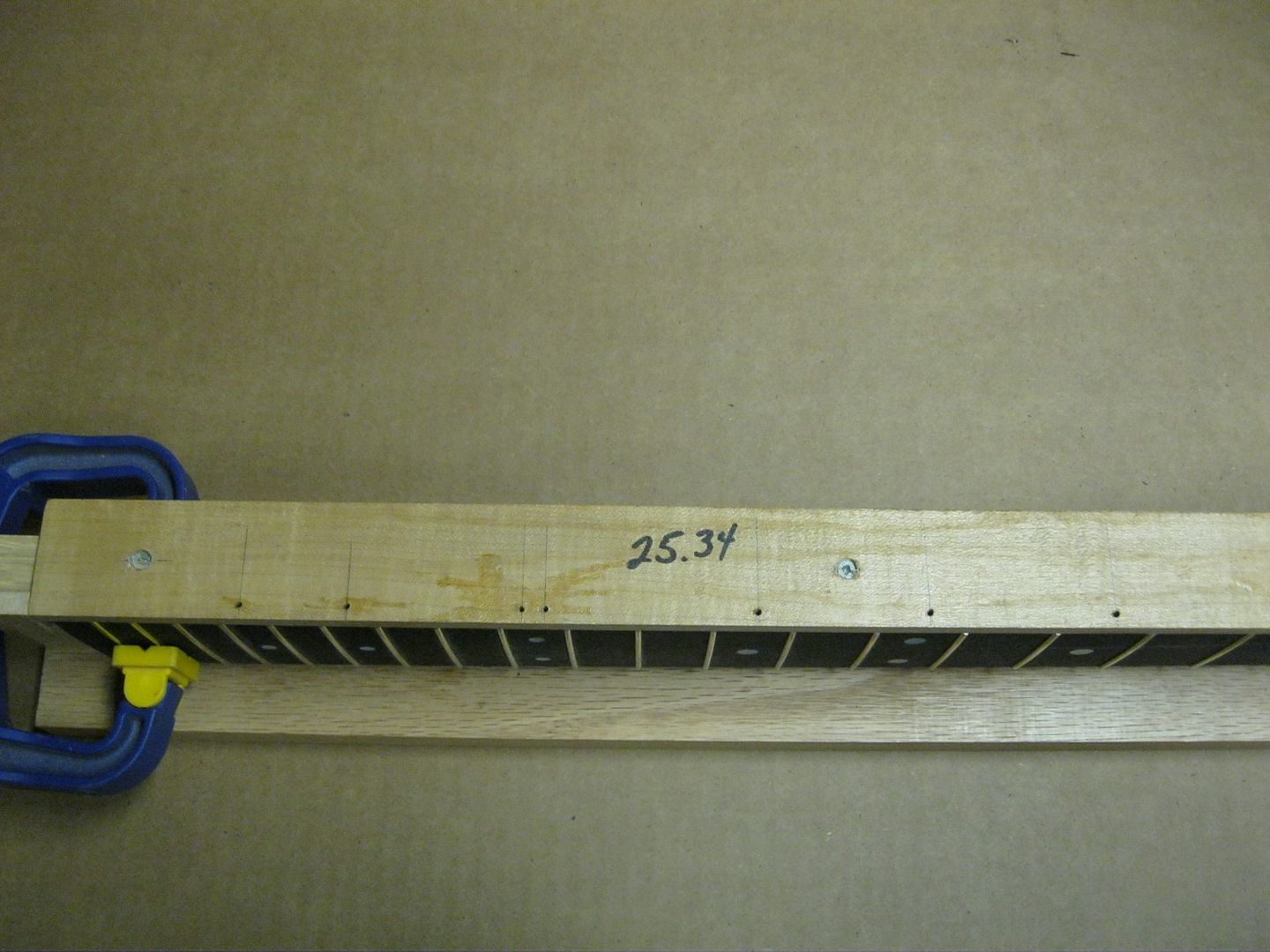

Agreed it can be a pita --- here's one of our fixtures. Its designed for a drill press. I did plan to use hardened drill bushings but the hard Maple has held up well. After each session we drizzle a little thin CA in the holes.



_________________
Ken Cierp

http://www.kennethmichaelguitars.com/


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Sat Oct 24, 2015 6:36 pm
Offline
Contributing Member
Contributing Member

Joined: Sun Jan 27, 2008 4:10 pm
Posts: 2764
First name: Tom
Last Name: West
State: Nova Scotia
Country: Canada
Focus: Build
Status: Amateur
As Terence has done away with jigs, so have I. I just center in two directions, mark with an awl and drill with a hand driven jewelers drill. I find this for me to be the easiest and most accurate.
Tom

_________________
A person who has never made a mistake has never made anything!!!


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Sat Oct 24, 2015 9:39 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Jan 04, 2005 10:03 am
Posts: 6680
Location: Abbotsford, BC Canada
kencierp wrote:
Agreed it can be a pita --- here's one of our fixtures. Its designed for a drill press. I did plan to use hardened drill bushings but the hard Maple has held up well. After each session we drizzle a little thin CA in the holes.




That's slick.

I have something like this but on an individual hole basis. Here it is. I have holes for 1/16"and 3/32" set. It's a piece of aluminum angle with a piece of birch plywood screwed to it. I just mark out the dot locations on the top of the board and clamp the jig in place and use my hand drill. This way (Like Ken's) they're all registered the same distance off the bottom of the fretboard.

Attachment:
fretboard side dot drilling jig.jpg


Attachment:


You do not have the required permissions to view the files attached to this post.

_________________
My Facebook Guitar Page

"There's really no wrong way, as long as the results are what's desired." Charles Fox

"We have to constantly remind ourselves what we're doing....No Luthier is putting a man on the moon!" Harry Fleishman

"Generosity is always different in the eye of the person who didn't receive anything, but who wanted some." Waddy Thomson


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Sun Oct 25, 2015 6:32 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Wed Apr 08, 2009 9:34 am
Posts: 3081
Freehand always worked for me.


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Sun Oct 25, 2015 8:07 am
Offline
Koa
Koa
User avatar

Joined: Wed Jan 14, 2009 3:14 am
Posts: 995
Location: Shefford, Québec
First name: Tim
Last Name: Mullin
City: Shefford
State: QC
Zip/Postal Code: J2M 1R5
Country: Canada
Focus: Build
Status: Professional
A brad point bit pretty much solves the "wandering" problem, but can be tricky to find in the really small diameters. LMI carries small sizes at reasonable price.


Sent from my iPad using Tapatalk


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Sun Oct 25, 2015 8:53 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Tue Aug 17, 2010 3:31 pm
Posts: 1682
First name: Kevin
Last Name: Looker
City: Worthington
State: OH
Zip/Postal Code: 43085
Country: USA
Focus: Build
Status: Amateur
Anyone seen this at the 4:20 point?

_________________
I'm not a luthier.
I'm just a guy who builds guitars in his basement.
It's better than playing golf.


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Sun Oct 25, 2015 9:27 am
Offline
Cocobolo
Cocobolo

Joined: Fri Nov 02, 2007 2:53 pm
Posts: 497
Location: Canada
Marking out with an awl first can save a lot of mistakes. I do it marking out for tuners, dots on the face of the fingerboard. bridge pins, and end pin as well.

Brent


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Sun Oct 25, 2015 9:39 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Fri Dec 14, 2007 3:21 pm
Posts: 3444
Location: Alexandria MN
I use the little pointed scribe StewMac sells for inlay work as a marking awl and have the small LMI brad tipped bits. That has pretty much solved the wandering problem.

_________________
It's not what you don't know that hurts you, it's what you do know that's wrong.


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Sun Oct 25, 2015 9:32 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Wed Feb 15, 2006 7:37 am
Posts: 4820
Tim Mullin wrote:
A brad point bit pretty much solves the "wandering" problem, but can be tricky to find in the really small diameters. LMI carries small sizes at reasonable price.


After having these on my list for years and messing around with random bits here and there, I finally upped my drill bit game a few months ago. These are available in sets and individually, also in imperial and metric.

HSS Brad Point Bits

HSS Twist Drill Bits

I picked up the set of 7 brad points, 10mm (for tuners), along with 3/32", 7/64", 9/64", 5/32" to cover all of the common screw sizes, and a few sizes in twist.

They're incredible. Sharp to the point that I handle them with care just so I don't slice myself. Highly recommended.


Last edited by James Orr on Sat Sep 10, 2016 11:32 am, edited 1 time in total.

Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Sun Oct 25, 2015 10:56 pm
Offline
Koa
Koa
User avatar

Joined: Sat Aug 19, 2006 1:29 am
Posts: 1384
Location: United States
I do it just like Terence. And Tom apparently! Seems like good company :)

_________________
Burton
http://www.legeytinstruments.com
Brookline, MA.


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Mon Oct 26, 2015 6:24 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Wed Oct 08, 2008 11:36 am
Posts: 7472
Location: Southeast US
City: Lenoir City
State: TN
Zip/Postal Code: 37772
Country: US
Focus: Repair
Burton LeGeyt wrote:
I do it just like Terence. And Tom apparently! Seems like good company :)

Yep

_________________
Steve Smith
"Music is what feelings sound like"


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Mon Oct 26, 2015 8:31 am
Offline
Brazilian Rosewood
Brazilian Rosewood

Joined: Tue May 13, 2008 10:44 am
Posts: 6262
Location: Virginia
I do it the same way Terrence, et al, as well but have never thought of that simple little tape trick. Thanks for the tip!


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Mon Oct 26, 2015 10:28 am
Offline
Cocobolo
Cocobolo

Joined: Sun Jan 27, 2008 1:40 pm
Posts: 455
Location: Stillwater, Oklahoma
First name: Roger
State: Oklahoma
Focus: Build
Status: Amateur
I mark mine after the board is glued to the neck but before the neck is carved. I came up with this little jig, and it solved all my problems.





Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Tue Oct 27, 2015 12:39 pm
Offline
Koa
Koa

Joined: Sat May 17, 2014 12:45 pm
Posts: 644
First name: Lonnie
Last Name: Barber
City: Manchester
State: Tennessee
Zip/Postal Code: 37355
Country: United States
Focus: Build
Status: Amateur
I do it like Haans


Sent from my iPhone using Tapatalk


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Tue Oct 27, 2015 1:54 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Fri May 18, 2012 8:35 pm
Posts: 2660
First name: D
Last Name: S
State: TX
Country: USA
Focus: Build
Status: Amateur
I eyeball the location and poke with an ice pick.
Then drill with a small palm sized cordless drill.

_________________
wah
Wah-wah-wah-wah
Wah


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Wed Oct 28, 2015 6:57 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Wed Sep 08, 2010 12:17 am
Posts: 1292
First name: John
Last Name: Arnold
City: Newport
State: TN
Zip/Postal Code: 37821
Country: USA
Focus: Repair
Status: Professional
Awl, #1 center drill, wire gauge drill.

https://www.carbidedepot.com/formulas-centerdrills.htm

IMHO, center drills are very handy for the times you need accurate placement of holes. I use a #2 to drill bridges and a #2 or #3 to drill pegheads.

_________________
John


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Wed Oct 28, 2015 7:19 am
Offline
Contributing Member
Contributing Member
User avatar

Joined: Wed Oct 08, 2008 11:36 am
Posts: 7472
Location: Southeast US
City: Lenoir City
State: TN
Zip/Postal Code: 37772
Country: US
Focus: Repair
John Arnold wrote:
Awl, #1 center drill, wire gauge drill.

https://www.carbidedepot.com/formulas-centerdrills.htm

IMHO, center drills are very handy for the times you need accurate placement of holes. I use a #2 to drill bridges and a #2 or #3 to drill pegheads.


John, Are you using the center drills in a hand drill? I use these on my lathe but have never tried using them by hand. Guess I could just try it.

_________________
Steve Smith
"Music is what feelings sound like"


Top
 Profile

 Post subject: Re: Side Marker Dots
PostPosted: Wed Oct 28, 2015 6:26 pm
Offline
Contributing Member
Contributing Member
User avatar

Joined: Wed Sep 08, 2010 12:17 am
Posts: 1292
First name: John
Last Name: Arnold
City: Newport
State: TN
Zip/Postal Code: 37821
Country: USA
Focus: Repair
Status: Professional
Quote:
Are you using the center drills in a hand drill?


Sure. Hand drill, lathe, drill press....it's all good.

_________________
John



These users thanked the author John Arnold for the post: SteveSmith (Wed Oct 28, 2015 7:30 pm)
